Order Barrier

Reading the market through volume-validated order barriers

ZynAlgo Order Barrier does one thing: it marks the price areas where a confirmed swing pivot happened at the same moment as an unusually one-sided burst of volume, then follows how price behaves every time it comes back to those areas. It is a mapping and context tool - not an entry-signal generator.

To build that map, the indicator works with:

• confirmed pivot highs and pivot lows over a user-set scan period,
• a per-bar directional (delta) volume reading derived from candle direction and volume,
• an adaptive volume threshold that decides which pivots deserve a zone,
• long-term ATR, which sizes the thickness of each zone,
• and the interaction between price and the edges of every zone already on the chart.

The result on TradingView is a chart carrying a small number of volume-backed supply and demand zones instead of dozens of hand-drawn lines - plus a running visual record of which of those zones is still being defended and which has already given way.

Inside ZynAlgo Order Barrier: the volume-validated barrier zone

The core concept is the Order Barrier: a swing pivot that is promoted to a zone only when the volume printed at that pivot was strongly one-sided. A pivot on its own only tells you that price turned. A pivot with heavy directional volume behind it tells you the turn cost somebody real money - and those are the levels price tends to react to again.

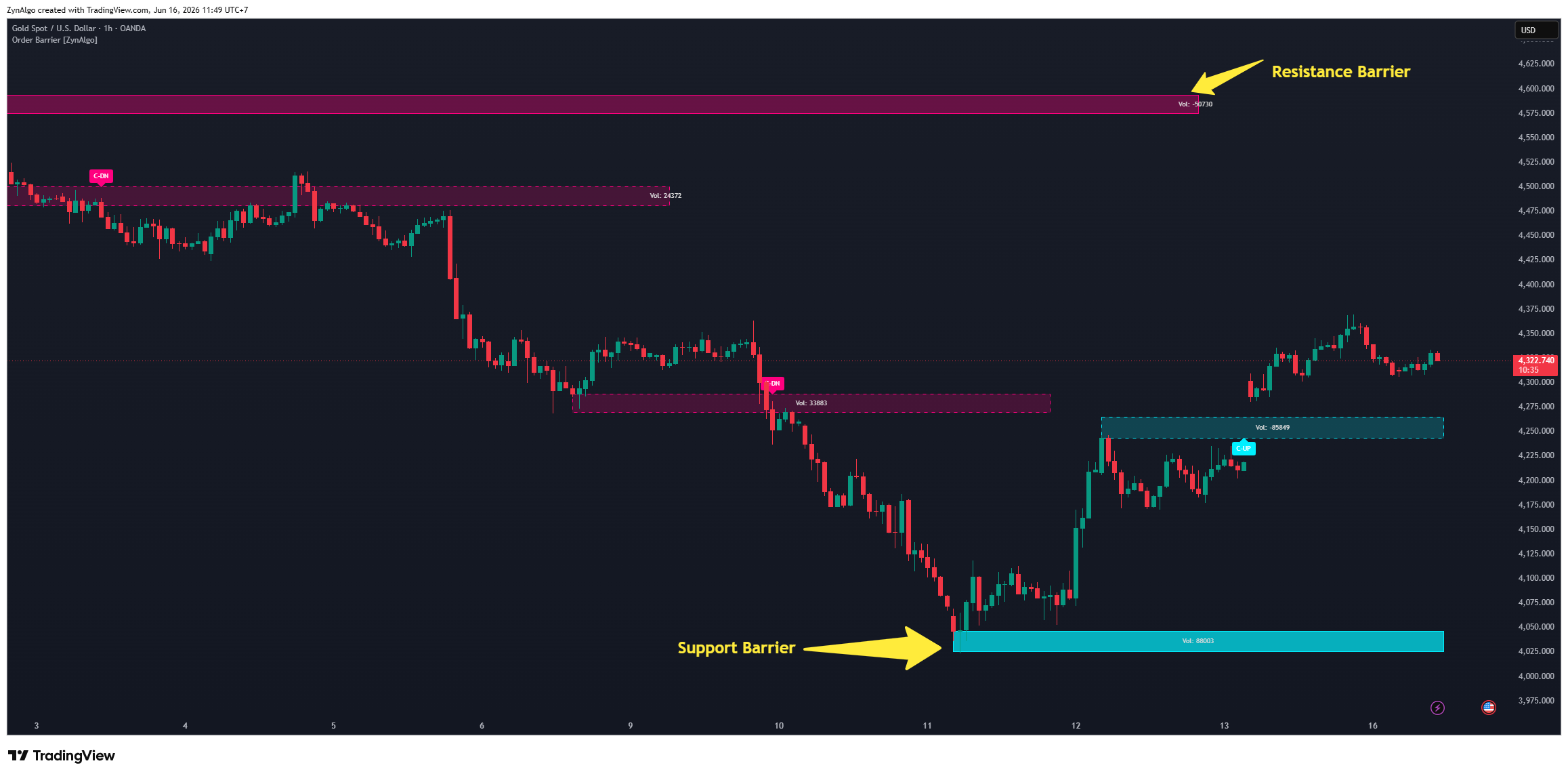

What a valid Order Barrier looks like on the chart:

• a cyan box hanging BELOW a swing low - demand, built when that bar carried strong positive delta volume;
• a pink box sitting ABOVE a swing high - supply, built when that bar carried strong negative delta volume;
• a fill whose intensity scales with how large that delta volume was compared with the last 25 bars;
• a "Vol:" readout printed inside every box, showing the exact net delta volume that created it;
• a zone, not a line - the box always has thickness.

Common mistake: treating every swing high and low as equal. Most levels on a chart are simply where price paused; with no participation behind them there is nothing to defend them on the retest. The volume filter exists to leave those out - which also means a quiet range may produce very few boxes. That is the filter working, not a fault.

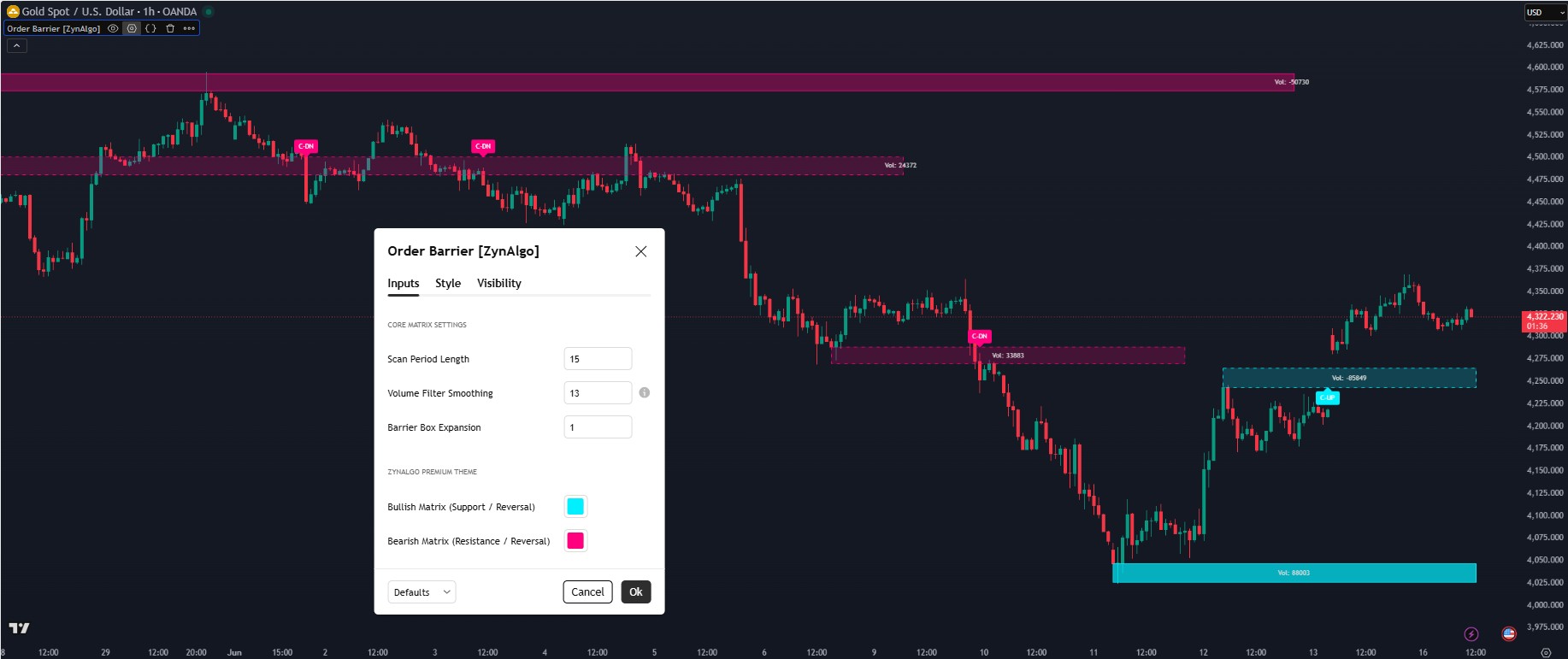

How the Order Barrier is defined

• Pivot detection (Scan Period Length) - locates the swing high or swing low that anchors the barrier. A pivot is only confirmed after the same number of bars has passed to its right, so a barrier is always drawn back at the pivot bar, never on the live bar.
• Delta volume reading - each bar contributes +volume when it closes above its open and -volume when it closes below. This directional participation measure is what the whole filter is built on.
• Adaptive volume threshold (Volume Filter Smoothing) - the delta reading is scaled down and tracked over a short window; a demand barrier requires the current delta to sit above the recent high of that band, a supply barrier requires it to sit below the recent low. Raising the value makes the band harder to clear, so fewer and more selective barriers appear.
• ATR(200) x Barrier Box Expansion - sets how far the box extends away from the pivot price - downward from a pivot low, upward from a pivot high. Being ATR-based, zones widen automatically in volatile conditions and tighten in quiet ones.
• Gradient fill - the background is graded by delta volume relative to the strongest reading of the last 25 bars, so a heavier barrier also looks visually heavier.
• Neon colour pair - cyan for the bullish / demand side, pink for the bearish / supply side. Both colours are editable in the settings.
• Right-edge extension - every active box keeps stretching to the current bar, so an old barrier stays live and testable instead of expiring.
• Box budget - the chart holds up to 50 barrier boxes; the oldest drop off as new ones form.

When trading opportunities appear

ZynAlgo Order Barrier does not print BUY or SELL entries. There is no entry arrow, no long/short call, and no stop or target logic inside the tool. What it prints is four interaction states that describe how price treated a barrier - the entry decision and the risk plan stay with you.

The four states, exactly as the tool computes them:

• Floor defence - cyan symbol below the bar - the bar's low crosses back up through the pivot price of a demand barrier: the zone was tested and held.
• Ceiling defence - pink symbol above the bar - the bar's high crosses back down through the pivot price of a supply barrier: the zone rejected price.

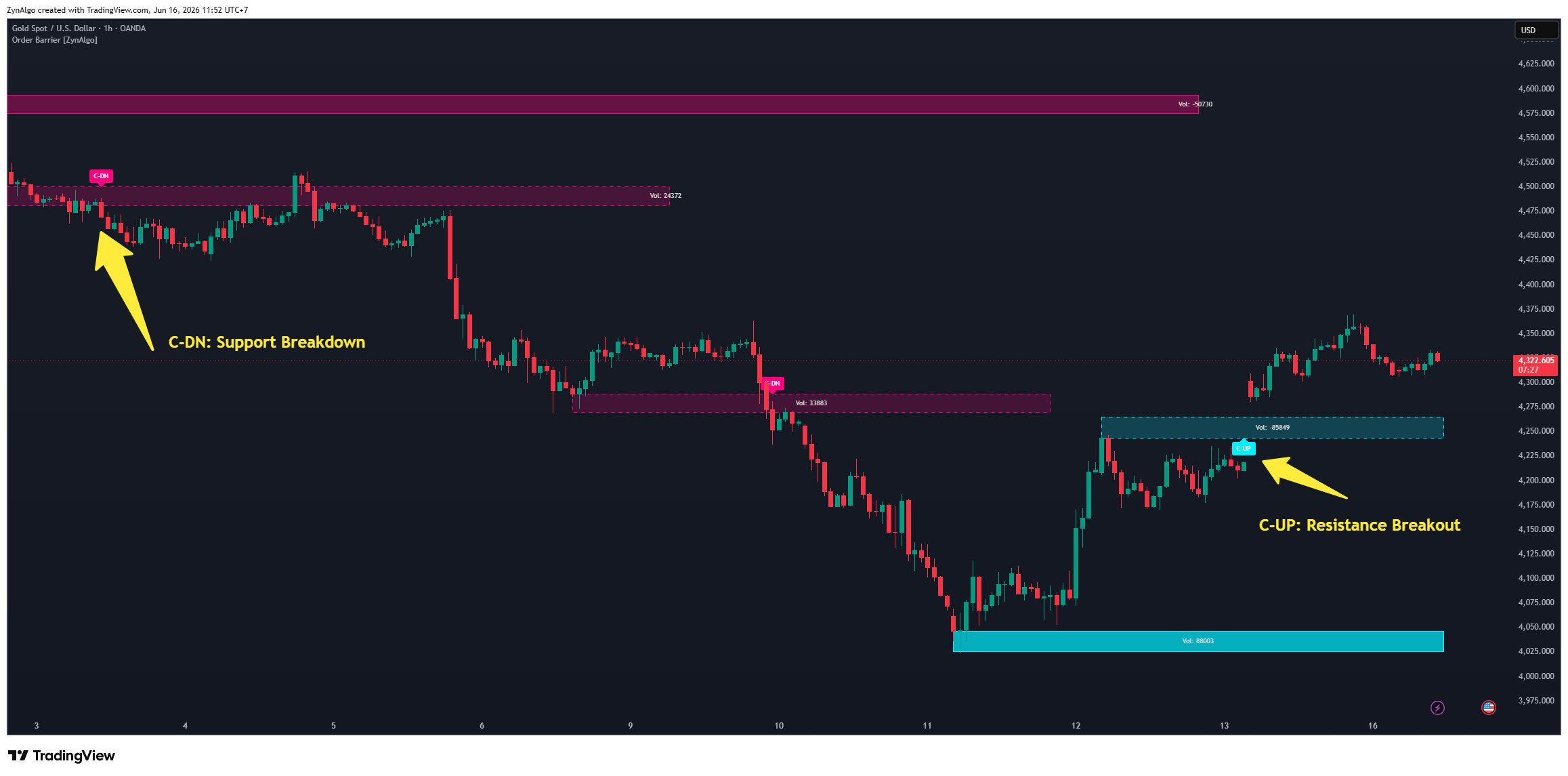

• C-UP label (cyan, at the supply pivot) - the bar's low clears above the OUTER edge of a supply barrier for the first time - price is not merely poking into supply, the whole bar range is above it. Read it as: this ceiling has been taken out.
• C-DN label (pink, at the demand pivot) - the bar's high drops below the OUTER edge of a demand barrier for the first time - the floor has been lost.

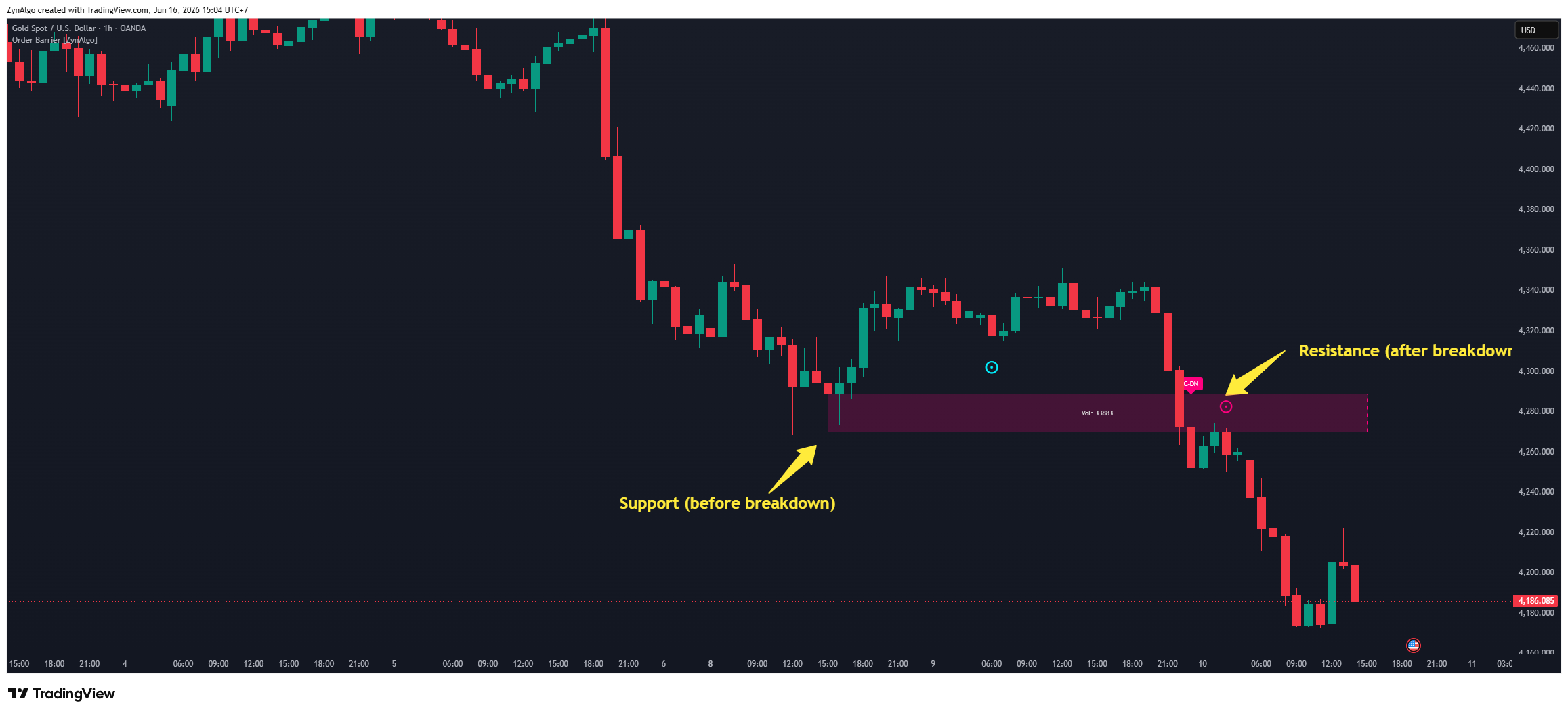

After a break the barrier does not disappear - it changes state, and that is where the role-reversal reading comes from:

• a broken zone flips to the opposite colour and to a DASHED border, marking it as already taken out;
• if price later returns and defends it, the zone goes back to a SOLID border and its original fill;
• while a zone is still in the broken state, a further clearance in the same direction prints another symbol marker - cyan below the bar after an upside clearance, pink above the bar after a downside one - flagging an old ceiling now acting as a floor, or an old floor now acting as a ceiling.

Market conditions worth reading alongside those states:

• repeated defence markers on the same zone - participation is still being spent defending it;
• a C-UP or C-DN on a box whose fill is barely tinted - the barrier that just broke was a light one;
• price drifting between two barriers with no markers at all - nothing is being decided, so there is no context edge;
• a break followed shortly by a defence marker on the same zone from the other side - the break-and-retest transition this tool was built to make visible.

The labels are deliberately short: C-UP means a clearance upward through supply, C-DN means a clearance downward through demand. Nothing more is implied about the direction of the next move.

Best suited for

• Supply & demand and support/resistance traders - you want the levels filtered by participation rather than drawn by eye.
• Intraday and swing traders on volume-bearing markets - futures, indices and crypto. On spot FX the feed is tick volume, so treat the filter as a rough proxy there.
• Break-and-retest / role-reversal playbooks - you need one consistent, mechanical definition of "broken" and "defended" instead of a judgement call.
• Traders who already own an entry trigger - Order Barrier supplies context, not a system to follow blindly.

A barrier is a reaction area, never a promise. The value is in knowing which levels the market has actually paid to defend, then working fewer and better-located ideas around them with your own risk management in place.
